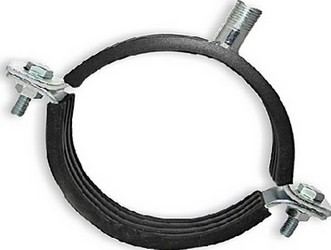

MASIV (heavy duty) pipe clamp, type M12 and 1 clamping head
Surface finish: galvanic zinc plated. MASIV (heavy duty) pipe clamp is designed for the fixing of heavy, steel or cast iron pipes. In combination with a pole with thread and the corresponding bracket, you can create a fixed point, which can be anchored directly to the ceiling, wall, floor or beam assembly. Clamp mounting head M12 (M16) is intended to consolidate the heavy, steel or cast iron pipe. You may also add options to the main clamp 1/2, 3/4, 1, 5/4. With absorbing rubber liner.
| Part Number | Fixing head (mm) | External diameter of the pipe | K x T (mm) | Quantity | cijena/Ikom) |
|---|---|---|---|---|---|
| (mm) | |||||
| OMASSW100020023 | M12,M16 | 20-23 | 40x4 | 1 kom | 22 HRK |
| OMASSW100025030 | M12,M16 | 25-30 | 40x4 | 1 kom | 23 HRK |
| OMASSW100031038 | M12,M16 | 31-38 | 40x4 | 1 kom | 24 HRK |
| OMASSW100040046 | M12,M16 | 40-46 | 40x4 | 1 kom | 25 HRK |
| OMASSW100048053 | M12,M16 | 48-53 | 40x4 | 1 kom | 25 HRK |
| OMASSW100060064 | M12,M16 | 60-64 | 40x4 | 1 kom | 26 HRK |
| OMASSW100067071 | M12,M16 | 67-71 | 40x4 | 1 kom | 27 HRK |
| OMASSW100072078 | M12,M16 | 72-78 | 40x4 | 1 kom | 27 HRK |
| OMASSW100087092 | M12,M16 | 87-92 | 40x4 | 1 kom | 29 HRK |
| OMASSW100108118 | M12,M16 | 108-118 | 40x4 | 1 kom | 46 HRK |
| OMASSW100125130 | M12,M16 | 125-130 | 40x4 | 1 kom | 51 HRK |
| OMASSW100133137 | M12,M16 | 133-137 | 40x4 | 1 kom | 54 HRK |
| OMASSW100138144 | M12,M16 | 138-144 | 40x4 | 1 kom | 55 HRK |
| OMASSW100159165 | M12,M16 | 159-165 | 40x4 | 1 kom | 61 HRK |
| OMASSW100164170 | M12,M16 | 164-170 | 40x4 | 1 kom | 62 HRK |
| OMASSW100182188 | M12,M16 | 182-188 | 40x4 | 1 kom | 66 HRK |
| OMASSW100193203 | M12,M16 | 193-203 | 40x4 | 1 kom | 74 HRK |
| OMASSW100208214 | M12,M16 | 208-214 | 40x4 | 1 kom | 76 HRK |
| OMASSW100217224 | M12,M16 | 217-224 | 40x4 | 1 kom | 79 HRK |
| OMASSW100244254 | M12,M16 | 244-254 | 40x4 | 1 kom | 86 HRK |
| OMASSW100267277 | M12,M16 | 267-277 | 40x4 | 1 kom | 92 HRK |
| OMASSW100278282 | M12,M16 | 278-282 | 40x4 | 1 kom | 93 HRK |
| OMASSW100313318 | M12,M16 | 313-318 | 40x4 | 1 kom | 104 HRK |
| OMASSW100320326 | M12,M16 | 320-326 | 40x4 | 1 kom | 148 HRK |
| OMASSW100353360 | M12,M16 | 353-360 | 40x4 | 1 kom | 148 HRK |
Without damping rubber liners
| Part Number | Fixing head (mm) | External diameter of the pipe | K x T (mm) | Quantity | cijena/Ikom) |
|---|---|---|---|---|---|
| (mm) | |||||
| OMASOW100015019 | M8,M10 | 15-19 | 25x2 | 1 kom | 14 HRK |
| OMASOW100020024 | M8,M10 | 20-24 | 25x2 | 1 kom | 14 HRK |
| OMASOW100025030 | M8,M10 | 25-30 | 25x2 | 1 kom | 16 HRK |
| OMASOW100031035 | M8,M10 | 31-35 | 30x2,5 | 1 kom | 17 HRK |
| OMASOW100037041 | M8,M10 | 37-41 | 30x2,5 | 1 kom | 17 HRK |
| OMASOW100040045 | M8,M10 | 40-45 | 30x2,5 | 1 kom | 18 HRK |
| OMASOW100048053 | M8,M10 | 48-53 | 30x2,5 | 1 kom | 18 HRK |
| OMASOW100054059 | M8,M10 | 54-59 | 30x2,5 | 1 kom | 19 HRK |
| OMASOW100060065 | M8,M10 | 60-65 | 30x2,5 | 1 kom | 20 HRK |
| OMASOW100067072 | M8,M10 | 67-72 | 30x2,5 | 1 kom | 20 HRK |
| OMASOW100076081 | M10,M12 | 76-81 | 30x3 | 1 kom | 24 HRK |
| OMASOW100082087 | M10,M12 | 82-87 | 30x3 | 1 kom | 25 HRK |
| OMASOW100088093 | M10,M12 | 88-93 | 30x3 | 1 kom | 25 HRK |
| OMASOW100096101 | M10,M12 | 96-101 | 30x3 | 1 kom | 26 HRK |
| OMASOW100102108 | M10,M12 | 102-108 | 30x3 | 1 kom | 27 HRK |
| OMASOW100110116 | M10,M12 | 110-116 | 30x3 | 1 kom | 28 HRK |
| OMASOW100116123 | M10,M12 | 116-123 | 30x3 | 1 kom | 29 HRK |
| OMASOW100124129 | M10,M12 | 124-129 | 30x3 | 1 kom | 29 HRK |
| OMASOW100133140 | M12,M16 | 133-140 | 40x4 | 1 kom | 51 HRK |
| OMASOW100140148 | M12,M16 | 140-148 | 40x4 | 1 kom | 53 HRK |
| OMASOW100149155 | M12,M16 | 149-155 | 40x4 | 1 kom | 54 HRK |
| OMASOW100159165 | M12,M16 | 159-165 | 40x4 | 1 kom | 56 HRK |
| OMASOW100167173 | M12,M16 | 167-173 | 40x4 | 1 kom | 58 HRK |
| OMASOW100176184 | M12,M16 | 176-184 | 40x4 | 1 kom | 60 HRK |
| OMASOW100188194 | M12,M16 | 188-194 | 40x4 | 1 kom | 62 HRK |
| OMASOW100199205 | M12,M16 | 199-205 | 40x4 | 1 kom | 64 HRK |
| OMASOW100207216 | M12,M16 | 207-216 | 40x4 | 1 kom | 66 HRK |
| OMASOW100219225 | M12,M16 | 219-225 | 40x4 | 1 kom | 68 HRK |
| OMASOW100230236 | M12,M16 | 230-236 | 40x4 | 1 kom | 70 HRK |
| OMASOW100244250 | M12,M16 | 244-250 | 40x4 | 1 kom | 73 HRK |
| OMASOW100255261 | M12,M16 | 255-261 | 40x4 | 1 kom | 76 HRK |
| OMASOW100267273 | M12,M16 | 267-273 | 40x4 | 1 kom | 78 HRK |
| OMASOW100278284 | M12,M16 | 278-284 | 40x4 | 1 kom | 80 HRK |
Navedene cijene su bez PDV, a plaća se pouzećem. Ukoliko je naveden broj narudžbenice, molimo napišite iz odabranu vrstu robe. Troškovi dostave od 55 HRK.
