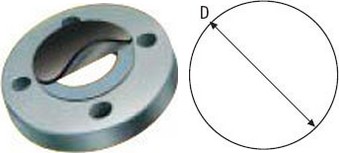

Self-Adhesive Flange Discs
Black Rubber. Provide full flange face protection. Protect both DIN and ANSI flange specifications. Ozone and weather resistant. Withstand temperatures up to +100°C. Resistant to petrol, oil and non-oxidisation acids. Available with holes for internal bore sand blasting. Standard thickness 1,5 mm.
| Narudžbenica broj | promjer [mm] | Disc Diameter | cijena/Ikom) |
|---|---|---|---|
| 48326 | 1/2" | 36 | 2,6 HRK |
| 48327 | 3/4" | 45 | 3,9 HRK |
| 48328 | 1" | 54 | 6,7 HRK |
| 48329 | 1 1/2" | 75 | 8,9 HRK |
| 48330 | 2" | 95 | 16 HRKč |
| 48331 | 3" | 130 | 23 HRK |
| 48332 | 4" | 160 | 37 HRK |
| 48333 | 5" | 200 | 44 HRK |
| 48334 | 6" | 220 | 65 HRK |
| 48335 | 8" | 275 | 104 HRK |
| 48336 | 10" | 330 | 150 HRK |
| 48337 | 12" | 390 | 212 HRK |
| 48338 | 14" | 415 | 239 HRK |
| 48339 | 16" | 475 | 317 HRK |
| 48340 | 18" | 540 | 410 HRK |
| 48341 | 20" | 590 | 490 HRK |
| 48342 | 24" | 700 | 689 HRK |
All ANSI flange discs suitable for series pressure group (lbs) 150, 300, 400, 600, 900, 1500 and 2500.
| Narudžbenica broj | promjer [mm] | Disc Diameter | Series Pressure Group (Bar) | cijena/Ikom) |
|---|---|---|---|---|
| 48311 | DN 10 | 40 | 6,10,16,25,40,64 | 2,2 HRK |
| 48312 | DN 15 | 45 | 6,10,16,25,40,64 | 3,3 HRK |
| 48313 | DN 20 | 58 | 6,10,16,25,40,64 | 6,3 HRK |
| 48314 | DN 25 | 68 | 6,10,16,25,40,64 | 7,1 HRK |
| 48315 | DN 32 | 78 | 6,10,16,25,40,64 | 10 HRK |
| 48316 | DN 40 | 88 | 6,10,16,25,40,64 | 12 HRK |
| 48317 | DN 50 | 102 | 6,10,16,25,40,64 | 18 HRK |
| 48318 | DN 65 | 122 | 6,10,16,25,40,64 | 23 HRK |
| 48319 | DN 80 | 138 | 6,10,16,25,40,64 | 26 HRK |
| 48320 | DN 100 | 158 | 6,10,16,25,40,64 | 32 HRK |
| 48321 | DN 125 | 188 | 6,10,16,25,40,64,100,160 | 47 HRK |
| 48322 | DN 150 | 212 | 6,10,16,25,40,64,100,160 | 42 HRK |
| 48323 | DN 200 | 268 | 6,10,16,25,40,64,100,160 | 60 HRK |
For information about stock availability please contact sales department.
Cijene su bez PDV-a i vrijede prilikom plaćanja pouzećem.
