Premium Handwheels

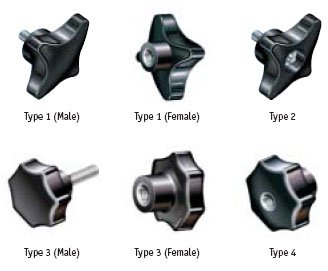

Black Phenolic. Types 1 and 3 - Male Handwheels with plated steel stud. Types 1 and 3 - Female Handwheels with plated steel insert. Types 2 and 4 - Female bush inserted allows male thread to pass through.
| Narudžbenica broj | tip | Handwheel Diameter (mm) | Thread | Stud Length | Komada u pakovanju | cijena/pakovanje/kom | cijena/Ikom) |
|---|---|---|---|---|---|---|---|
| 462051 | 1 | 32 | M6 | 15 | 200 | 10 HRK | 17 HRK |
| 462052 | 1 | 32 | M6 | 30 | 200 | 11 HRK | 18 HRK |
| 462053 | 1 | 40 | M8 | 20 | 125 | 16 HRK | 25 HRK |
| 462054 | 1 | 40 | M8 | 30 | 125 | 16 HRK | 27 HRK |
| 466406 | 1 | 50 | M8 | 25 | 100 | 13 HRK | 21 HRK |
| 462055 | 1 | 50 | M10 | 30 | 100 | 23 HRK | 37 HRK |
| 462056 | 1 | 50 | M10 | 40 | 100 | 24 HRK | 39 HRK |
| 466407 | 1 | 60 | M10 | 30 | 100 | 18 HRK | 25 HRK |
| 466408 | 1 | 80 | M12 | 40 | 50 | 19 HRK | 31 HRK |
| 462057 | 3 | 32 | M6 | 15 | 200 | 12 HRK | 20 HRK |
| 462058 | 3 | 32 | M6 | 20 | 200 | 13 HRK | 21 HRK |
| 462059 | 3 | 32 | M6 | 30 | 200 | 13 HRK | 21 HRK |
| 462060 | 3 | 40 | M8 | 20 | 100 | 22 HRK | 36 HRK |
| 462061 | 3 | 40 | M8 | 30 | 100 | 18 HRK | 30 HRK |
| 462062 | 3 | 50 | M8 | 30 | 80 | 24 HRK | 39 HRK |
| 462063 | 3 | 50 | M10 | 30 | 80 | 27 HRK | 44 HRK |
| 462064 | 3 | 63 | M8 | 20 | 50 | 36 HRK | 56 HRK |
| 462065 | 3 | 63 | M10 | 30 | 40 | 35 HRK | 55 HRK |
| 462066 | 3 | 63 | M12 | 25 | 40 | 39 HRK | 63 HRK |
| Narudžbenica broj | tip | Handwheel Diameter (mm) | Thread | Komada u pakovanju | cijena/pakovanje/kom | cijena/Ikom) |
|---|---|---|---|---|---|---|
| 462067 | 1 | 32 | M6 | 1000 | 12 HRK | 19 HRK |
| 462068 | 1 | 40 | M8 | 500 | 17 HRK | 27 HRK |
| 466403* | 1 | 50 | M8 | 100 | 10 HRK | 17 HRK |
| 462069 | 1 | 50 | M10 | 250 | 28 HRK | 47 HRK |
| 466404* | 1 | 60 | M10 | 100 | 12 HRK | 19 HRK |
| 462070 | 1 | 63 | M10 | 80 | 36 HRK | 60 HRK |
| 462071 | 1 | 63 | M12 | 100 | 37 HRK | 58 HRK |
| 466405* | 1 | 80 | M12 | 100 | 22 HRK | 36 HRK |
| 462072 | 1 | 80 | M16 | 35 | 64 HRK | 99 HRK |
| 462073 | 3 | 32 | M5 | 250 | 11 HRK | 18 HRK |
| 462074 | 3 | 32 | M6 | 500 | 12 HRK | 19 HRK |
| 462075 | 3 | 40 | M6 | 200 | 18 HRK | 30 HRK |
| 462076 | 3 | 40 | M8 | 250 | 18 HRK | 30 HRK |
| 462077 | 3 | 50 | M8 | 100 | 25 HRK | 41 HRK |
| 462078 | 3 | 50 | M10 | 250 | 23 HRK | 38 HRK |
| 462079 | 3 | 50 | M12 | 100 | 31 HRK | 51 HRK |
| 462080 | 3 | 63 | M8 | 50 | 34 HRK | 55 HRK |
| 462081 | 3 | 63 | M10 | 50 | 36 HRK | 60 HRK |
| 462082 | 3 | 63 | M12 | 100 | 38 HRK | 60 HRK |
| 462083 | 3 | 80 | M10 | 25 | 59 HRK | 93 HRK |
| 462084 | 3 | 80 | M12 | 25 | 63 HRK | 99 HRK |
| 462085 | 3 | 80 | M16 | 100 | 57 HRK | 89 HRK |
* With aluminium insert.
| Narudžbenica broj | tip | Handwheel Diameter (mm) | Thread | Komada u pakovanju | cijena/pakovanje/kom | cijena/Ikom) |
|---|---|---|---|---|---|---|
| 466409 | 2 | 50 | M8 | 100 | 11 HRK | 20 HRK |
| 466410 | 2 | 60 | M10 | 100 | 16 HRK | 26 HRK |
| 466411 | 2 | 80 | M12 | 100 | 21 HRK | 34 HRK |
| 462086 | 4 | 30 | M5 | 50 | 30 HRK | 49 HRK |
| 462087 | 4 | 30 | M6 | 50 | 30 HRK | 49 HRK |
| 462088 | 4 | 30 | M8 | 50 | 33 HRK | 55 HRK |
| 462089 | 4 | 40 | M6 | 50 | 33 HRK | 55 HRK |
| 462090 | 4 | 40 | M8 | 50 | 35 HRK | 58 HRK |
| 462091 | 4 | 40 | M10 | 50 | 39 HRK | 65 HRK |
| 462092 | 4 | 50 | M10 | 25 | 43 HRK | 68 HRK |
| 462093 | 4 | 50 | M12 | 25 | 48 HRK | 75 HRK |
| 462094 | 4 | 60 | M10 | 20 | 53 HRK | 82 HRK |
| 462095 | 4 | 60 | M12 | 20 | 58 HRK | 91 HRK |
Cijene su bez PDV-a i vrijede prilikom plaćanja pouzećem.
