EUROMODEL Indexed clamping lever with threaded stud
This product is not for sale! You can choose an alternative category plastic parts.
Material: Galvanized steel outer thread
Povrch: Satin
Barva těla páčky: Černá (RAL 9011)
Alternativa barev pro tělo páčky: Oranžová (RAL 2004 cod. 02)
Modrá (RAL 5015 cod. 07)
Žlutá (RAL 1021 cod. 10)
Červená (RAL 3000 cod.16)
Zelená (RAL 6024 cod.17)
Šedá (RAL 7035 cod. 13)
Materiál je odolný vůči olejům a mazivům. Materiál je vysoce odolný díky zesíleného skelného vlákna z technopolymeru.

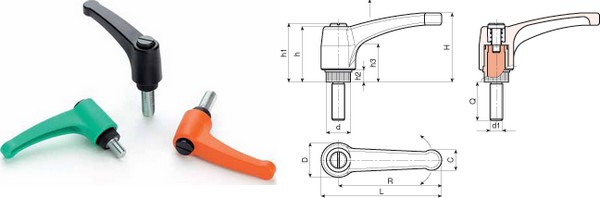

| Narudžbenica broj | L | R | H | D | d | c | h | h1 | h2 | h3 | d1 | Q | Cijena za kom |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A581-43 M04x.. | 51 | 43 | 33 | 17 | 11,5 | 9 | 29 | 32 | 6 | 18 | M4 | 10-16-20-25-30-40 | 11 HRK |
| A581-43 M05x.. | 51 | 43 | 33 | 17 | 11,5 | 9 | 29 | 32 | 6 | 18 | M5 | 10-16-20-25-30-40 | 11 HRK |
| A581-43 M06x.. | 51 | 43 | 33 | 17 | 11,5 | 9 | 29 | 32 | 6 | 18 | M6 | 10-16-20-25-30-40-50 | 11 HRK |
| A581-52 M06x.. | 63 | 52 | 41 | 22 | 15 | 12 | 36 | 40 | 8 | 23 | M6 | 16-20-25-30-35-40-50 | 13 HRK |
| A581-52 M08x.. | 63 | 52 | 41 | 22 | 15 | 12 | 36 | 40 | 8 | 23 | M8 | 16-20-25-30-35-40-45-50 | 13 HRK |
| A581-65 M06x.. | 76 | 65 | 43 | 23 | 15 | 13 | 36 | 40 | 8 | 24 | M6 | 16-20-25-30-35-40-45-50 | 14 HRK |
| A581-65 M08x.. | 76 | 65 | 43 | 23 | 15 | 13 | 36 | 40 | 8 | 24 | M8 | 16-20-25-30-35-40-45-50 | 14 HRK |
| A581-80 M08x.. | 93 | 80 | 54 | 27 | 19 | 15,5 | 44 | 48 | 8,5 | 29 | M8 | 20-25-30-35-40-45-50 | 16 HRK |
| A581-80 M10x.. | 93 | 80 | 54 | 27 | 19 | 15,5 | 44 | 48 | 8,5 | 29 | M10 | 20-25-30-35-40-45-50 | 16 HRK |
| A581-80 M12x.. | 93 | 80 | 54 | 27 | 19 | 15,5 | 44 | 48 | 8,5 | 29 | M12 | 20-25-30-35-40-50-60-70-80 | 16 HRK |
| A581-94 M08x.. | 109 | 94 | 56 | 30 | 19 | 18 | 45 | 49 | 9 | 30 | M8 | 20-25-30-35-40-50 | 21 HRK |
| A581-94 M10x.. | 109 | 94 | 56 | 30 | 19 | 18 | 45 | 49 | 9 | 30 | M10 | 20-25-30-35-40-45-50-60-70-80 | 21 HRK |
| A581-94 M12x.. | 109 | 94 | 56 | 30 | 19 | 18 | 45 | 49 | 9 | 30 | M12 | 20-25-30-35-40-45-50-60-70-80 | 21 HRK |
| A581-108 M12x.. | 125 | 108 | 64 | 34 | 24 | 21 | 51 | 55 | 10 | 35 | M12 | 20-30-40-50-60-70 | 23 HRK |
| A581-108 M14x.. | 125 | 108 | 64 | 34 | 24 | 21 | 51 | 55 | 10 | 35 | M14 | 30-40-50-60 | 24 HRK |
| A581-108 M16x.. | 125 | 108 | 64 | 34 | 24 | 21 | 51 | 55 | 10 | 35 | M16 | 40-50-60 | 28 HRK |
Note: The price is determined by the lever length of the thread. The order number, enter the length of thread in two .. numeric codes (např. A581-43 M04x16)
