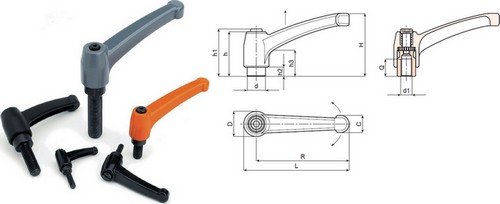

Zamak alloy indexed clamping lever with threaded stud
This product is not for sale! You can choose an alternative category plastic parts.
Material: Black finish steel insert, male thread
Lever body cast Zamak (zinc, aluminum, copper alloy)
Povrch: Hladký, povrch natřený epoxidovaným práškem
Barvy těla páčky: Leskle černá (RAL 9005)
Matná černá (RAL 9005)
Oranžová (RAL 2004)
Červená (RAL 3000)
Šedá metalíza (RAL 9006)
Šedá (RAL 7031)
Modrá (RAL 5015)
| Narudžbenica broj | L | R | H | D | d | c | h | h1 | h2 | h3 | d1 | Q | Cijena za kom |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A593-43 M04x.. | 50 | 43 | 30 | 14 | 10 | 9 | 26 | 30 | 5 | 14 | M4 | 16-20-25-30 | 24 HRK |
| A593-43 M05x.. | 50 | 43 | 30 | 14 | 10 | 9 | 26 | 30 | 5 | 14 | M5 | 16-20-25-30-40 | 24 HRK |
| A593-43 M06x.. | 50 | 43 | 30 | 14 | 10 | 9 | 26 | 30 | 5 | 14 | M6 | 16-20-25-30-40-50 | 24 HRK |
| A593-43 M08x.. | 50 | 43 | 30 | 14 | 10 | 9 | 26 | 30 | 5 | 14 | M8 | 25-40-50 | 25 HRK |
| A593-65 M06x.. | 75 | 65 | 45 | 19 | 14 | 13 | 32 | 34 | 7 | 14 | M6 | 16-20-25-30-40-50 | 29 HRK |
| A593-65 M08x.. | 75 | 65 | 45 | 19 | 14 | 13 | 32 | 34 | 7 | 14 | M8 | 16-20-25-30-35-40-45-50-60 | 29 HRK |
| A593-65 M10x.. | 75 | 65 | 45 | 19 | 14 | 13 | 32 | 34 | 7 | 14 | M10 | 20-25-30-35-40-45-50-60 | 29 HRK |
| A593-80 M08x.. | 91 | 80 | 57 | 22 | 16 | 16 | 40 | 42 | 8 | 16 | M8 | 20-25-30-35-40-45-50-60 | 35 HRK |
| A593-80 M10x.. | 91 | 80 | 57 | 22 | 16 | 16 | 40 | 42 | 8 | 16 | M10 | 20-25-30-35-40-45-50-60 | 35 HRK |
| A593-80 M12x.. | 91 | 80 | 57 | 22 | 16 | 16 | 40 | 42 | 8 | 16 | M12 | 20-25-30-35-40-50-60 | 35 HRK |
| A593-94 M12x.. | 107 | 94 | 65 | 26 | 20 | 17,5 | 47 | 50 | 10,5 | 19 | M12 | 20-25-30-35-40-50-60 | 49 HRK |
| A593-94 M14x.. | 107 | 94 | 65 | 26 | 20 | 17,5 | 47 | 50 | 10,5 | 19 | M14 | 30-35-40-50-60 | 50 HRK |
| A593-94 M16x.. | 107 | 94 | 65 | 26 | 20 | 17,5 | 47 | 50 | 10,5 | 19 | M16 | 30-40-50-60 | 51 HRK |
| A593-108 M12x.. | 123 | 108 | 75 | 30 | 23 | 20 | 54 | 56 | 12 | 23 | M12 | 25-50 | 61 HRK |
| A593-108 M14x.. | 123 | 108 | 75 | 30 | 23 | 20 | 54 | 56 | 12 | 23 | M14 | 20-30-40-50-60 | 62 HRK |
| A593-108 M16x.. | 123 | 108 | 75 | 30 | 23 | 20 | 54 | 56 | 12 | 23 | M16 | 20-30-40-50-60 | 62 HRK |
| A593-108 M18x.. | 123 | 108 | 75 | 30 | 23 | 20 | 54 | 56 | 12 | 23 | M18 | 20-30-40-50-60 | 68 HRK |
Pozn: Cena páčky se odvíjí od délky závitu. K obj. číslu zadejte délku závitu ve dvou.. číselných kódech (např. A593-43 M04x16)
Navedene cijene su bez PDV, a plaća se pouzećem. Ukoliko je naveden broj narudžbenice, molimo napišite iz odabranu vrstu robe. Troškovi dostave od 55 HRK.
