Lightweight control handwheel with handle
This product is not for sale! You can choose an alternative category plastic parts.
Material: Reinforced Polyamide
The material is resistant to oils and greases.
Surface: Satin
Handwheel and Handle colour: Black (RAL 9011)
Central cap: Grey polyamide (RAL 7035 cod.13)
Alternative cap color:
Orange (RAL 2004 cod. 02)
Blue (RAL 5015 cod. 07)
Yellow(RAL 1021 cod. 10)
Red (RAL 3000 cod .16)
Green (RAL 6024 cod.17)
Black (RAL 9011 cod. 01)
Main insert: Zinc plated steel

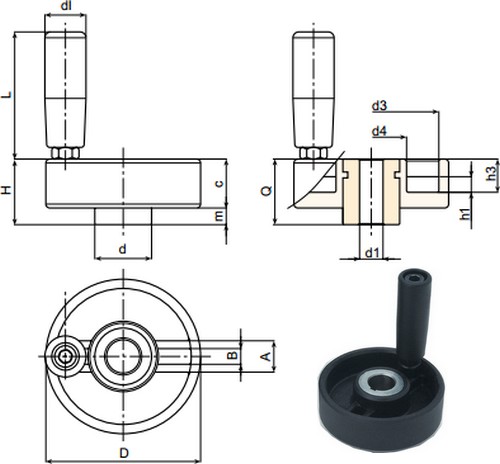

| Narudžbenica broj | D | H | d | c | m | h1 | h3 | A | B | d3 | d4 | d1 H7 | Q | dm | dl | L | Weight (g) | Cijena za kom |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D779-80 D05 | 80 | 34 | 29 | 25 | 9 | 8 | 17 | 16 | 7,5 | 69 | 36 | 5 H9 | 34 | 20 | 21 | 65 | 285 | 43 HRK |
| D779-80 D12 | 80 | 34 | 29 | 25 | 9 | 8 | 17 | 16 | 7,5 | 69 | 36 | 12 | 34 | 20 | 21 | 65 | 280 | 43 HRK |
Navedene cijene su bez PDV, a plaća se pouzećem. Ukoliko je naveden broj narudžbenice, molimo napišite iz odabranu vrstu robe. Troškovi dostave od 55 HRK.
