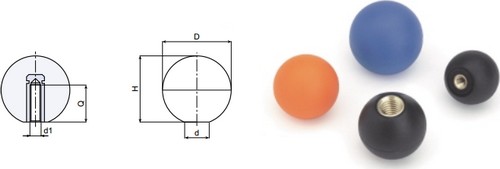

Ball with threaded insert
This product is not for sale! You can choose an alternative category plastic parts.
Material: Reinforced Polyamide
The material is resistant to oils and greases.
Surface: Satin
Color: Black (RAL 9011)
Main insert: Brass
(*) Reduced colour range
| Narudžbenica broj | D | H | d | d1 | Q | Weight (g) | Cijena za kom |
|---|---|---|---|---|---|---|---|
| I105-15 M04 | 15 | 14 | 8 | M4 | 8 | 4 | 3,6 HRK |
| I105-15 M05 | 15 | 14 | 8 | M5 | 7 | 4 | 3,6 HRK |
| I105-20 M04 | 20 | 19 | 10 | M4 | 8 | 8 | 3,8 HRK |
| I105-20 M05 | 20 | 19 | 10 | M5 | 7 | 8 | 3,8 HRK |
| I105-20 M06 | 20 | 19 | 10 | M6 | 7 | 8 | 3,9 HRK |
| I105-20 M08 | 20 | 19 | 10 | M8 | 7 | 8 | 4 HRK |
| I105-25 M05 | 25 | 23 | 14 | M5 | 10 | 12 | 4,6 HRK |
| I105-25 M06 | 25 | 23 | 14 | M6 | 10 | 12 | 4,6 HRK |
| I105-25 M08 | 25 | 23 | 14 | M8 | 11 | 14 | 4,6 HRK |
| I105-25 M10 | 25 | 23 | 14 | M10 | 14 | 12 | 4,8 HRK |
| I105-30 M05 | 30 | 29 | 14 | M5 | 15 | 22 | 5,2 HRK |
| I105-30 M06 | 30 | 29 | 14 | M6 | 16 | 22 | 5,2 HRK |
| I105-30 M08 | 30 | 29 | 14 | M8 | 14 | 22 | 5,4 HRK |
| I105-30 M10 | 30 | 29 | 14 | M10 | 14 | 22 | 6 HRK |
| I105-30 M12 | 30 | 29 | 14 | M12 | 18 | 26 | 6,4 HRK |
| I105-35 M06 | 35 | 33 | 16 | (*)M6 | 16 | 34 | 6,7 HRK |
| I105-35 M08 | 35 | 33 | 16 | (*)M8 | 14 | 34 | 6,9 HRK |
| I105-35 M10 | 35 | 33 | 16 | (*)M10 | 14 | 34 | 7,3 HRK |
| I105-35 M12 | 35 | 33 | 16 | (*)M12 | 18 | 32 | 7,6 HRK |
| I105-40 M08 | 40 | 39 | 16 | (*)M8 | 14 | 52 | 7,9 HRK |
| I105-40 M10 | 40 | 39 | 16 | (*)M10 | 14 | 52 | 7,9 HRK |
| I105-40 M12 | 40 | 39 | 16 | (*)M12 | 18 | 52 | 8,5 HRK |
| I105-40 M14 | 40 | 39 | 16 | (*)M14 | 19 | 50 | 8,5 HRK |
| I105-45 M08 | 45 | 44 | 18 | (*)M8 | 14 | 60 | 10 HRK |
| I105-45 M10 | 45 | 44 | 18 | (*)M10 | 18 | 60 | 10 HRK |
| I105-45 M12 | 45 | 44 | 18 | (*)M12 | 18 | 58 | 11 HRK |
| I105-45 M14 | 45 | 44 | 18 | (*)M14 | 19 | 56 | 11 HRK |
| I105-50 M10 | 50 | 49 | 18 | (*)M10 | 18 | 94 | 14 HRK |
| I105-50 M12 | 50 | 49 | 18 | (*)M12 | 18 | 92 | 14 HRK |
| I105-50 M14 | 50 | 49 | 18 | (*)M14 | 19 | 90 | 14 HRK |
Navedene cijene su bez PDV, a plaća se pouzećem. Ukoliko je naveden broj narudžbenice, molimo napišite iz odabranu vrstu robe. Troškovi dostave od 55 HRK.
