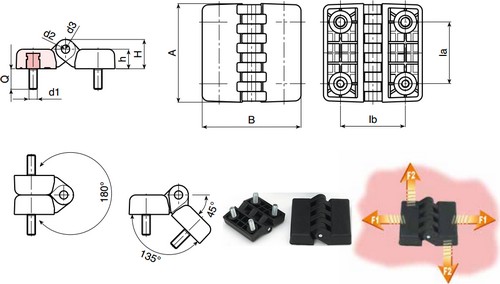

Flat hinge with threaded stud
This product is not for sale! You can choose an alternative category plastic parts.
Material: Reinforced Polyamide
The material is resistant to oils and greases.
Surface: Satin
Color: Black (RAL 9011)
Main insert: Zinc plated steel
| Narudžbenica broj | Ia | Ib | A | B | h | H | d1 | Q | d2 | d3 | Weight (g) | F1(N) | F2(N) | Cijena za kom |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| O431-30 M5 | 30 | 30 | 48 | 48 | 10,5 | 15,5 | M5 | 15 | 5 | 10 | 49 | 1780 | 1370 | 27 HRK |
| O431-30 M6 | 30 | 30 | 48 | 48 | 10,5 | 15,5 | M6 | 15 | 5 | 10 | 52 | 1780 | 1370 | 27 HRK |
| O431-40 M6 | 40 | 40 | 64 | 64 | 13 | 19 | M6 | 20 | 5 | 12 | 90 | 4120 | 1760 | 34 HRK |
| O431-40 M8 | 40 | 40 | 64 | 64 | 13 | 19 | M8 | 20 | 5 | 12 | 100 | 4120 | 1760 | 34 HRK |
| O431-60 M8 | 60 | 63 | 95 | 95 | 19 | 28,5 | M8 | 20 | 8 | 18 | 260 | 4900 | 1275 | 53 HRK |
| O431-60 M10 | 60 | 63 | 95 | 95 | 19 | 28,5 | M10 | 20 | 8 | 18 | 278 | 4900 | 1275 | 53 HRK |
Navedene cijene su bez PDV, a plaća se pouzećem. Ukoliko je naveden broj narudžbenice, molimo napišite iz odabranu vrstu robe. Troškovi dostave od 55 HRK.
