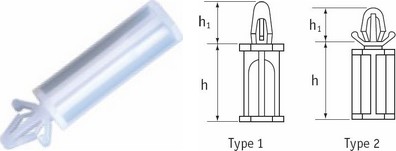

Screw-Fastened Supports
Nylon 6.6
Click-in/screw-in design.
To suit PCB thickness 1,0 - 1,8 mm.
Fixing hole for assembly with self-tapping screw (not supplied).
| Narudžbenica broj | parametri (mm) | Mounting Hole | tip | Količina u pakovanju | cijena/pakovanje/kom | Cijena za kom | ||
|---|---|---|---|---|---|---|---|---|
| h | h1 | PCB | Chassis | |||||
| 463788 | 5,0 | 8,0 | 4,0 | 3,5 | 2 | 100 kom | 0,87 HRK | 1,4 HRK |
| 100206400002 | 6,4 | 9,0 | 4,0 | 3,5 | 1 | 100 kom | 0,84 HRK | 1,6 HRK |
| 100209100002 | 9,6 | 8,0 | 4,0 | 3,5 | 2 | 100 kom | 0,78 HRK | 1,6 HRK |
| 100209500002 | 9,5 | 9,0 | 4,0 | 3,5 | 1 | 100 kom | 0,87 HRK | 1,4 HRK |
| 100212700002 | 12,7 | 9,0 | 4,0 | 3,5 | 1 | 100 kom | 0,75 HRK | 1,3 HRK |
| 100213100002 | 12,7 | 8,0 | 4,0 | 3,5 | 2 | 100 kom | 0,75 HRK | 1,5 HRK |
| 100215900002 | 15,9 | 9,0 | 4,0 | 3,5 | 1 | 100 kom | 0,75 HRK | 1,5 HRK |
| 100219100002 | 19,1 | 8,0 | 4,0 | 3,5 | 2 | 100 kom | 1,6 HRK | 1,8 HRK |
| 100219200002 | 19,1 | 9,0 | 4,0 | 3,5 | 1 | 100 kom | 0,78 HRK | 1,3 HRK |
| 100222200002 | 22,2 | 9,0 | 4,0 | 3,5 | 1 | 100 kom | 0,78 HRK | 1,6 HRK |
| 100225400002 | 25,4 | 9,0 | 4,0 | 3,5 | 1 | 100 kom | 0,84 HRK | 1,4 HRK |
| 100228600002 | 28,6 | 9,0 | 4,0 | 3,5 | 1 | 100 kom | 0,87 HRK | 1,4 HRK |
| 100229100002 | 28,5 | 8,0 | 4,0 | 3,5 | 2 | 100 kom | 1,5 HRK | 2,5 HRK |
| 463789 | 35,0 | 8,0 | 4,0 | 3,5 | 2 | 100 kom | 1,6 HRK | 2,6 HRK |
Cijene su bez PDV-a i vrijede prilikom plaćanja pouzećem.
